Running Sonar Qube Scan on Jenkins

Step 1: Install Sonar Qube Scanner on Jekins

• Manage Jenkins > Manage Plugins > Available > SonarQube Scanner for Jenkins
• Download: https://docs.sonarqube.org/display/SCAN/Analyzing+with+SonarQube+Scanner

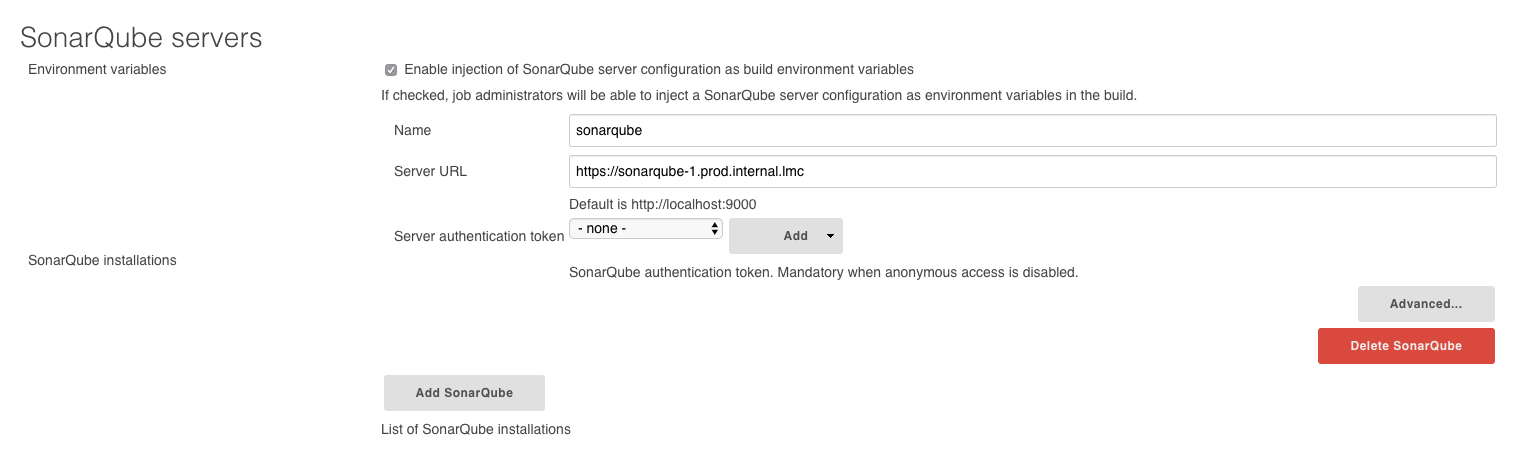

Step 2: Configure connection to Sonar Qube Server on Jenkins

• Manage Jenkins > Configure System > SonarQube servers > Add Sonar Qube

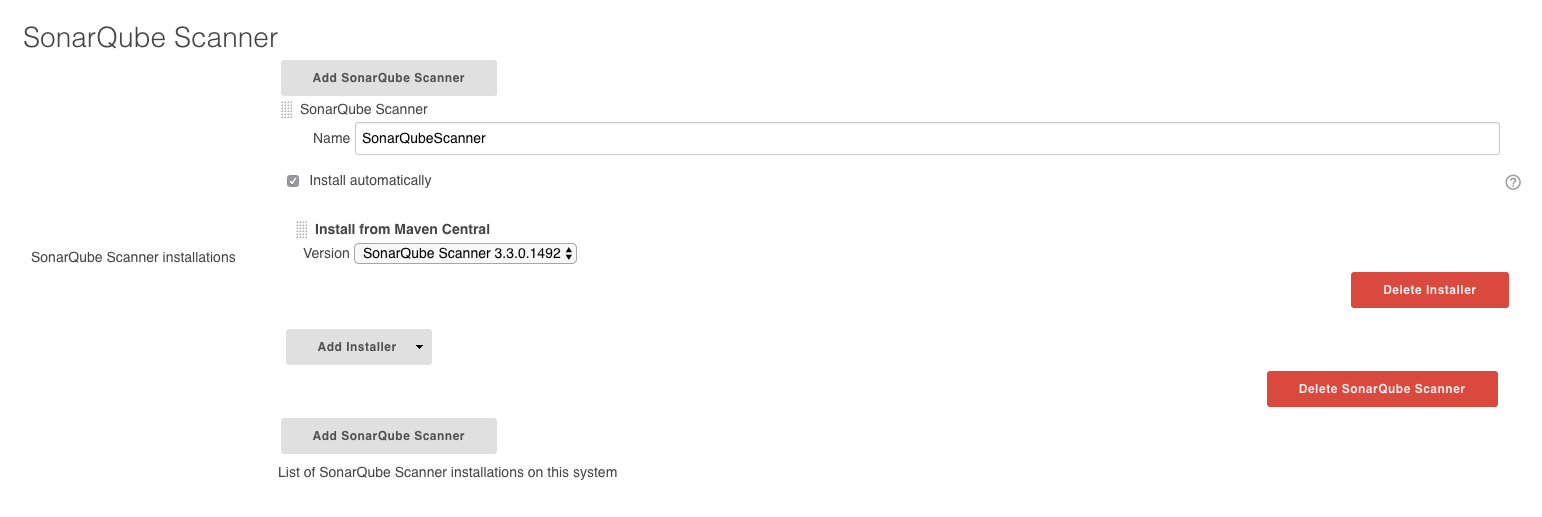

Step 3: Configure Sonnar Qube Scanner on Jenkins

• Manage Jenkins > Global Tool Configuration > SonarQube Scanner > Sonar Qube Scanner Instalations... > Add SonarQube Scanner

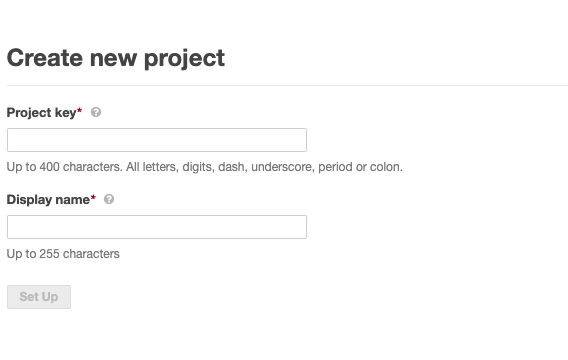

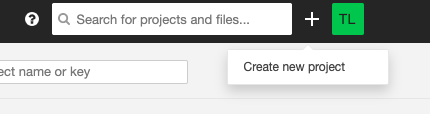

Step 4: Create new project in Sonar Qube

Step 5: Fill project properties

Step 6: Generate and remember token

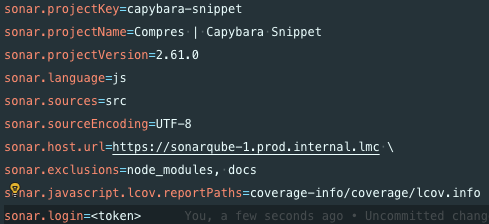

Step 7: Create sonar-project.properties in your repository root

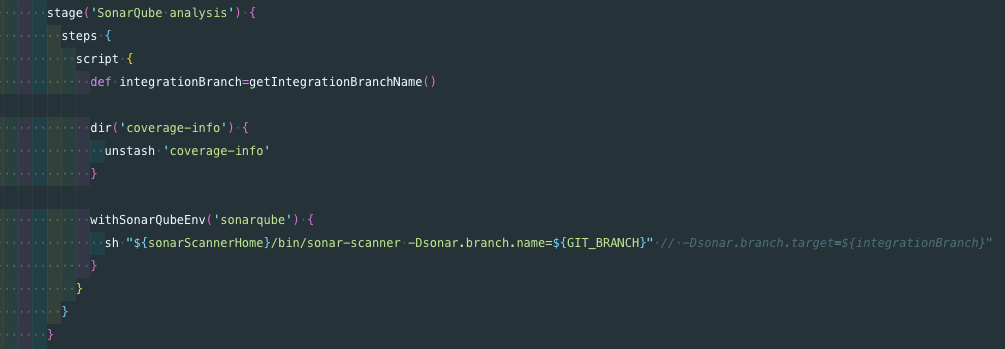

Step 8: Add Sonar Qube Analysis step into your Jenkins pipeline

• https://jenkins.io/doc/pipeline/steps/sonar/
• required Java runtime: add it as your agent dependecny or install default-jre package (required for scanner)

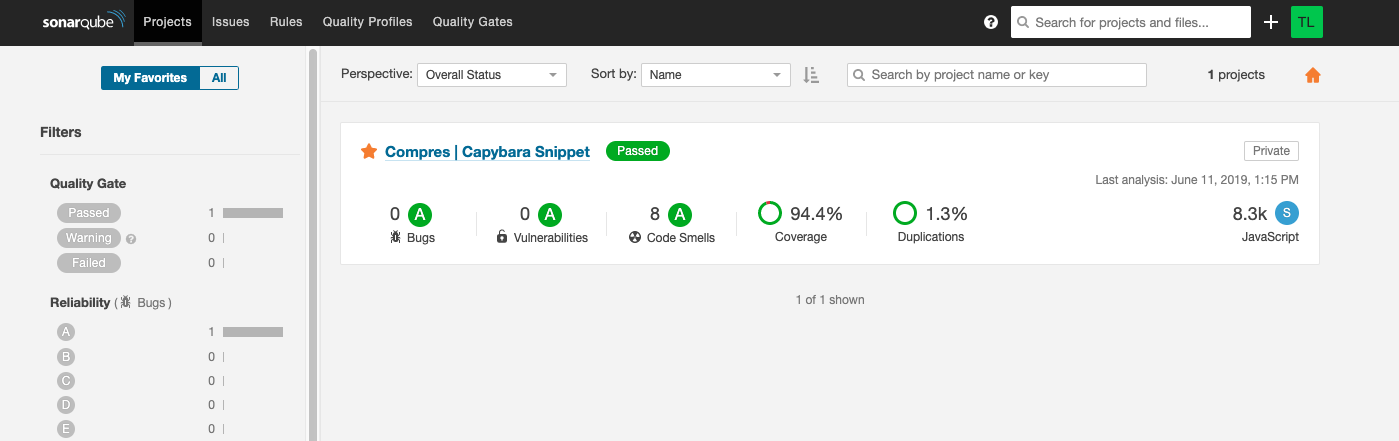

Step 9: Run pipeline and check analysis

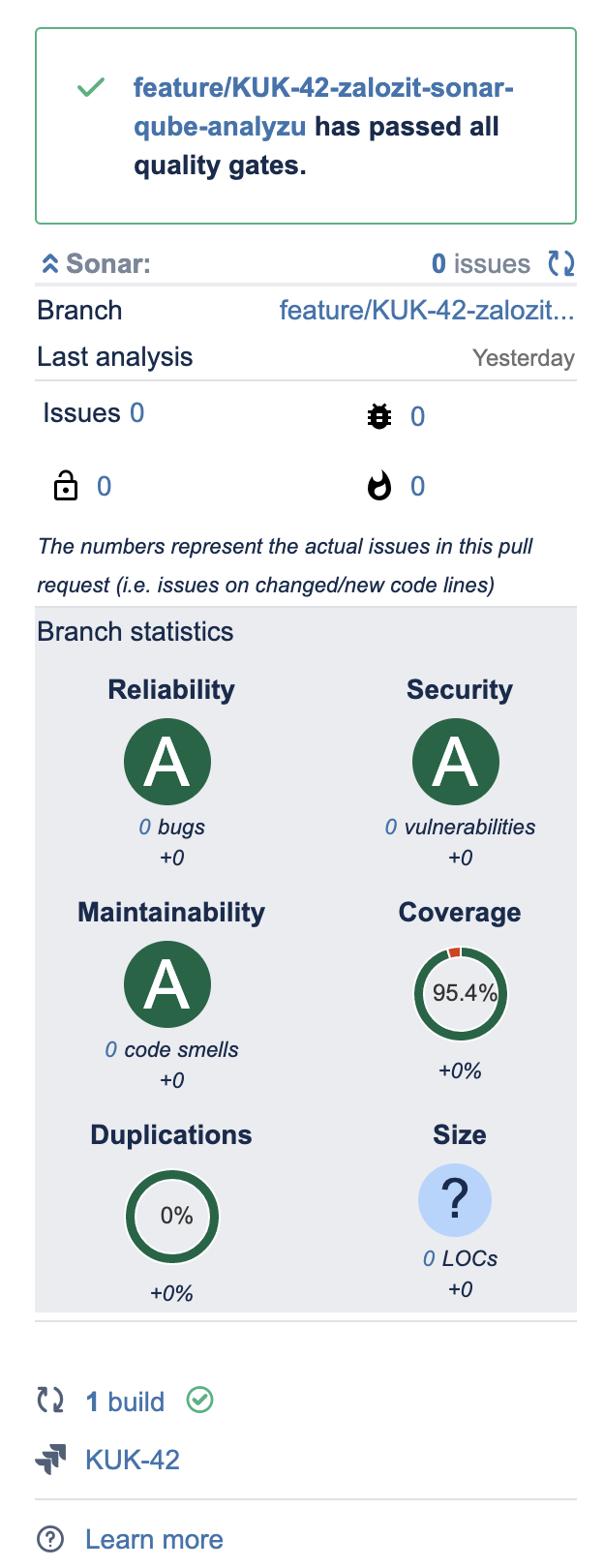

Step 10: Connect Bitbucket server

Step 11: Profit!
